RTI PIKO 42 RYGB

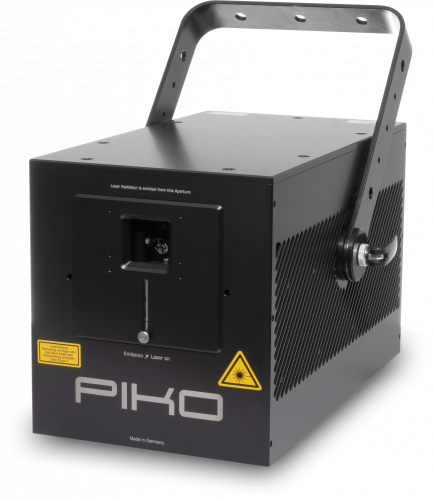

RTI PIKO Fl
The highly powerful RTI PIKO 42 RYGB is suitable for large and demanding indoor and outdoor applications.
Equipped with the latest RSL Semiconductor modules combined with a yellow OPSL, the RTI PIKO 42 RYGB has extraordinary good beam specifications, enhanced visibility and great white balance.
This laser system is made for top professional multimedia shows, installation projects and advanced projections.
Quality made in Germany!
Incl. waterproof flightcase
  • 42'000 mW guaranteed power
  • Advanced RSL Semiconductor modules for extremely good beam shape and low divergence, which is equal on x- and y-axis, combined with OPSL
  • Addition of high visibility 577nm yellow OPSL
  • Extremely sharp intense beams especially compared to other lasers of this power
  • Integrated FB4 MAX mainboard with advanced configuration features
  • Integrated network switch for linking the control signal
  • Integrated Touch-Display for adjustment of basic functions
  • Rugged tour grade housing
  • 360° Bracket with quick-lock system
  • Incl. waterproof flightcase
RTI PIKO Fl
RTI PIKO F
RTI PIKO Fr
RTI PIKO B
RTI PIKO L
Stand-Alone modeMODO AUTÓNOMO:
El láser funciona de forma autónoma y no necesita ningún control. Reproduce el contenido almacenado en la placa base del láser.
DMX modeMODO DMX:
El láser se puede controlar con un controlador DMX estándar o un software DMX.
ArtNET modeModo de Control ArtNET
LAN connectionMODO LAN:
El láser puede ser controlado a través de la LAN - que puede ser directamente por software, o ArtNET o similar (dependiendo de la placa base)
ILDA connectionModo ILDA:
El láser puede controlarse a través de ILDA estándar, la señal de control analógica para control de láser. Se pueden utilizar convertidores digitales-analógicos (DAC) externos.
Pangolin FB4 integratedFB4 INTEGRADO:
El láser puede ser controlado mediante una placa Pangolin FB4 integrada
MÁS INFORMACIÓN SOBRE EL PRODUCTO
Built with the latest RTI Semiconductor Laser Module technology and an extra-visible yellow OPSL head!

The RTI PIKO 42 RYGB is made in Germany and is a powerful show laser system with extremely good visibility that is ideally suited for top professional laser show applications of any kind. It is built with the latest RTI semiconductor laser modules that are specially designed in a way to keep spot size as well as divergence equal on both x- and y-axis. This is significantly advantageous over solutions with a very good divergence on one axis, but a bad divergence on the other. The laser modules inside the RTI PIKO 42 RYGB are different - the spot size and shape is equal for all colors and on both axis!
The color range is extended with a yellow Coherent Taipan OPSL module for increased visibility - and matching spot size.

The beam specifications of the RTI PIKO 42 RYGB are given with only ca. 5.0 mm diameter and 0.7 mrad divergence - which applies to both axis, so it’s an actual value not an average and provides higher quality results than specifications with mixed calculations. The extremely small beam diameter allows for the use of very small mirrors, which results in reduced inertia and thus very good scanning performance.

KEY FEATURES

  • 42'000 mW total RYGB power in a small housing of only 271 x 491 x 296 mm
  • super small spot of ca. 5.0 mm for reduced inertia and thus fast scanning
  • 6'000 mW / 577 nm yellow Coherent Taipan OPSL module for increased visibility
  • All wavelengths matched in divergence and beam size
  • extremely low divergence of 0.7 mrad - on both axis!
  • Compact form factor, RSL module size equal to the Coherent OPSL modules
  • extremely lightweight unit with only 27 kg
  • Different, brighter wavelengths for increased visibility
  • brilliant colors and great color fading
  • RTI Semiconductor Laser Modules match up with the added Yellow OPSL in spot size and divergence
  • Laser modules do not come out of internal alignment
  • Maintenance free laser modules
  • Integrated network switch, control signal can easily be linked through
  • Interlock / e-stop signal can be daisy-chained
  • High quality product, made in Germany
  • Great scanning performance suitable for projections as well as for beams

The RTI PIKO 42 RYGB impresses with a guaranteed RYGB output power of 42'000 mW. Great visibility is achieved with the new RTI Semiconductor Laser Modules (RSL) with special wavelengths for increased visibility: 8'000 mW / 637 nm for a very bright red combined with 13'000 mW / 525 nm green and a strong blue laser module with 22'000 mW / 455 nm. An additional yellow Coherent Taipan OPSL head with 6'000 mW / 577 nm is added for significantly increased visibility - yellow is the best visible color to human eye. The 525 nm green provides a warmer green tone than the 520 nm diodes and also has increased visibility.
These new RSL modules with their extremely low divergence and homogenous beam shape make the RTI PIKO 42 RYGB a top professional laser system. The extremely small beam diameter of only ca. 5.0 mm allows for the use of small scanner mirrors which leads to reduced inertia and higher scan speeds. This is especially important, as the RTI PIKO 42 RYGB can be used for any kind of laser show application: Super sharp beams and vivid colors for large scale concerts and festivals but also a perfectly matched beam for crisp graphics.

The RTI Semiconductor Laser Modules are maintenance free and do not come out of internal alignment.
The standard scanners can be run at a maximum of 45kpps ILDA 8° and a maximum scan angle of 50°. CT-6210 scanners with LAS Turboscan drivers are available as option and provide even higher scan speeds with up to 60 kpps at ILDA 8°.

The housing is built very durable and ideal for use on the road. The new 360° brackets can be safely fixed in the needed position in just a few moments thanks to the quick-lock system. It has an interlock / e-stop through port, which allows for daisy-chaining the interlock signal, which means that only one e-stop is required for several laser systems. Due to the dustproof housing, the maintenance effort is very low and the device is also suitable for tough touring applications. Control signals can be looped through directly via the network switch, which is also integrated.

The powerful RTI PIKO 42 RYGB is suitable for indoor and outdoor show laser applications at concerts, festivals and other huge events. Demanding graphics projections or projections over long distances are possible without any problems, due to the extremely good divergence.

VER FOTOS EN DETALLE
DETALLES TÉCNICOS
Potencia Garantizada en la apertura
42'000 mW
Potencia Rojo
8'000 mW / 637 nm
Potencia Verde
13'000 mW / 525 nm
Potencia Azul
22'000 mW / 455 nm
Potencia Amarillo
6'000 mW / 577 nm
Espec. del Haz (ángulo completo)
ca. 5.0 mm / 0.7 mrad
Escáner
45kpps ILDA 8°; opcional CT-6210H con LAS Turboscan: 60 kpps@8° ILDA, max. 60°
Apertura Máx.
50°
Tipo de Láser
módulos RSL, Coherent Taipan OPSL
Clase
4
Modos de Uso:
ILDA, LAN (software), DMX, ArtNET, Stand-Alone;
Accesorios
cable de alimentación, manual, llave, interlock, incluye versión completa del software Showeditor
Clasificación IP
IP54
Fuente de Alimentación
85-250 V AC 50/60 Hz
Consumo Eléctrico
850 W
Tamaño
271 x 491 x 296 mm
Peso
27 kg
EAN / MPN
83621164FB4
*Debido a la tecnología de corrección óptica avanzada utilizada en nuestros sistemas láser, la potencia óptica de cada color dentro de los módulos láser instalados puede diferir ligeramente de la especificación de los respectivos módulos láser.
